Boxing Day, Mk II

One thing about the Friese ailerons is that the leading edge shape is critical for proper flying characteristics. Kerry fine tunes every SeyRey by hand after flying it, but for those of us far away from the factory this is not an option.

Fortunately, mi amigo Jim Ratte has taken the guesswork out of it by building a jig to mount them. It's a PITA to box and ship the ailerons corner-corner from Bellingham-Malabar, but Jim's work is worth having the airplane done right. (If you haven't built your ailerons yet, it might be cheaper to send Jim the parts and have him build and cover them all at once.)

Here's how I built my shipping box, all for under $50. First a sheet of 4x8 ply gets cut to 74" long, then 2x15" and 2x 9" wide. Reinforce the edges with 2x2, and attach the sides with 1" screws.

Reinforce the ends. The endcap is made from the scrap leftover when you trimmed the sheet to 74".

Another 2x2 along the bottom.I didn't photograph it, but this is also a good time to attach the 4x4s to the bottom, allowing a pallet loader or forklift the carry the crate.

A length of scrap 2x1 reinforces the sides. Remember delivery day when we found out (too late) that a forklift had punched into the end of the shipping crate, damaging the hull? I do.

Don't forget the top.

Fit check good.

Ikea to the rescue again! A simple way to pack the ailerons.

Fill in the gaps with block foam...

and a sheet of bubble wrap just because.

Off to Jim.
https://www.facebook.com/RecreationalMobility
http://seareyspecialist.com/

By the by, if you need something shipped Irene O'Donnell at Freightquote.com is an excellent person to talk to. 816.949.6688

"Wanna make it better?"

One fine day last year when I was busy swearing at myself and wondering what to do about the compass problem, a museum volunteer named Syd stopped by. I didn't know much about Syd except by an excellent reputation, but discovered that he had been an avionics tech in the Navy, and while I was a teenage Navy brat riding my bike around NAS Alameda dreaming of being a pilot, Syd was somewhere nearby working on the A-3 Whale.

Syd looked over the panel and electrical systems, asking questions and carefully examining our work. I like this... I like this.... I see about the compass problem, that's bad, what are you going to do about it? Ok, good idea... There is absolutely nothing wrong with the job your friend did, he said, it looks real good, and paused. After a moment he looked over his glasses at me with a twinkle in his eye and smiled. Want to make it better?



I hate it when people say that. I love it when people say that.

"Which way is Ireland?"

Well..... here's one big reason I haven't worked on Osp for a while. I gotta redo my instrument panel.

When we flipped the switch and put power to the avionics, the magnetic/vertical card compass promptly swung almost 45 deg off heading, and when I read the PAR-100EX radio manual it stated that the compass should be at least 6" away from the radio. D'oh!!! Even using the compensating screws I was unable to get a good alignment, and the problem remained when I switched to the Garmin GTR-200.

I discussed solutions with a couple local avionics techs, but either the solutions didn't work or I wasn't satisfied with them, too kludgy. There were a couple things that were annoying me about the way I had designed the panel anyway, so I've made the decision to take several steps backs and redo it. It'll delay flying again, but what I have in mind will pay off later, details to come later as I implement them.

First, I made some braces to hold the panel in place...

then I removed the nose deck. This gave me easier access, plus a better overall view of where stuff fit.

I also pulled the Skyview and the radio so I could see what was going on behind the panel while I was in the cockpit.

The ACI e-flap controller is a nice piece of engineering, but I'm not crazy about the faceplate. Won't take long to make a different one that fits in better with the aesthetics of the panel.

Rub-a-dub-dub, and a WTF?

As the summer went on I picked a warm morning and gave the wings a bath, washing off a couple years of hangar dust and getting them back inside the hangar before the PolyBrush got UV'd.

After they dried I noticed a sticky yellow substance oozing from the right wingtip fairing. By the consistency it's been happening for a while, consensus is that it's resin from the expanding foam used to fill the hollow edge of the tip, and if the wing been stored horizontal the resin would have just accumulated at the edge. But what's puzzling is that there is no foam high enough to be dripping through the opening. I'll be keeping an eye on it. Left wingtip is fine.

Friese ailerons

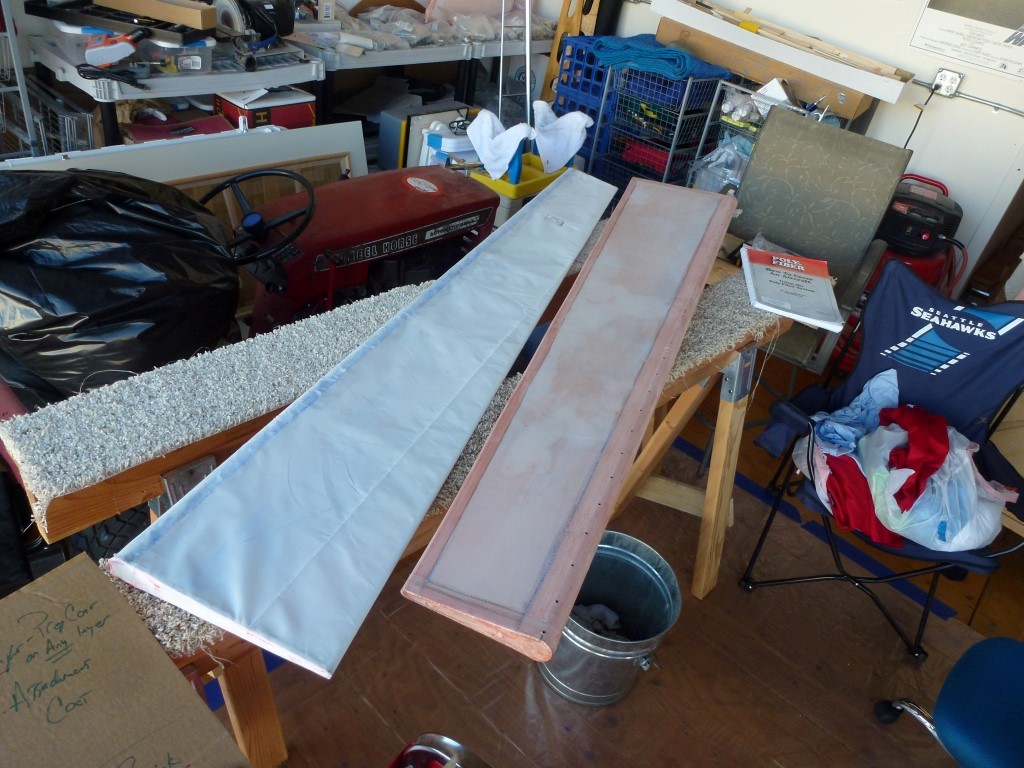

Nothing fancy here, just a record of assembling the new ailerons. They're essentially the same parts, but the ribs are shorter, the secret is with the hinges and fairings.

After I shrank the covering I discovered that I had not lined up one of the ribs as well as I thought. A call to my favorite Tech Support told me to put a piece of 2x4 along the leading edge and gently tap it with a hammer. Worked fine.







Glad to have them done, but truth be told, I'm a bit sorry. There are some aspects of the build I'd like to do more of, like covering.

Around the World in (many) Days

People often ask "How far can you go in that thing?". Back in October Mike and I had the opportunity to meet a gent who gave the ultimate answer to that question.

Michael Smith started in Melbourne, Australia in March with the intent of reflying the Qantas Empire Flying Boat route of 1938 from Sydney to London. Long story short, he got to London, took a break, and decided to keep going, making it all the way around the world in his custom built SeaRey, Southern Sun.

Michael was taking a break in Seattle when Mike and I were able to meet up with him for breakfast.

Michael continued from Seattle up into Alaska and along the Aleutians, before making an incredible one-stop leg from Adak-Attu-Kushiro. That's 1,680 miles in one day!!!!


I've got a great life, but it's good to see nice guys do even better. Congratulations, Michael, it was a real pleasure meeting you.

..

Deja Stab

About a year after Osp was delivered PA determined that the fin and rudder needed reinforcing, and sent me a kit with oversleeves to be riveted over the existing tubing.

Further testing determined the oversleeves were not necessary, but by this time I had already installed them. The SeaRey LSA/X is a little porker, a kit that used to come in under 900# often now weighs in the 1,000# range, leaving a small payload envelope to stay below the 1,435# max weight for an amphib. In addition, the SeaRey has a long tail moment and a short nose, meaning any excess weight in the tail requires more to compensate in the nose. Removing them would have left the structure weakened as a result of the holes I had drilled, so I was caught in a Catch-22.

After debating it, I decided to go ahead and acquire new stab frames, and while I was at it I acquired the new Friese ailerons. I'll fly Osp with the "Classic" ailerons, then switch to the newer ones at a date in the future if I want. By building them now I'd be able to paint everything at once and match the paint.

We've been there and done this before, but boiled linseed oil is still a sticky mess to apply and clean up.

Prep the hangar...

 and review old photos about previous assembly/covering days.

I really had to take a breath and ask myself if I wanted to do this again, if it was worth saving the weight. A quick slice of a knife ended the debate.

That's a lot of junk off a single stab.

A beat up hangar scale showed just under 2# removed, I stopped at the post office on the way home and got a more accurate reading of 2.1#/side, leading to a 4.2# weight removal from the tail, and saving an undetermined amount of weight I would have needed to add to the nose to counter the oversleeves. Worth it.

A long time ago...

It's not the years, it's the (s)miles.

Covering is FUN!!
